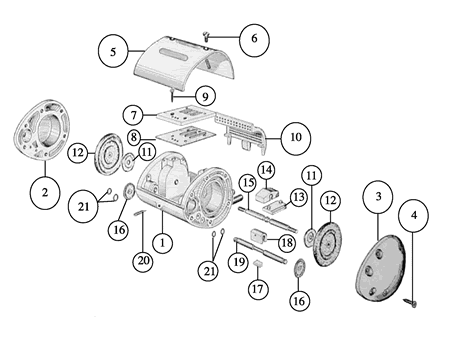

ACCESSORI

1 - Corpo principale
2 - Coperchio lat. sx
3 - Coperchio lat. dx
4 - Viti coperchi laterali
5 - Coperchio centrale
6 - Vite cop. centrale
7 - Piastra di base
8 - Guarnizione base
9 - Vite piastra base
10-Filtro
11-Rondella paramembrana
12-Membrana principale
13-Cassetto principale
14-Trasc. casset.princ.
15-Albero centrale
16-Membrana d'inversione
17-Valvola d'inversione
18-Trasc.valv.inversione
19-Albero anteriore
20-Spillo reg.velocità
21-O.R. tenuta

ACCESSORIES

1 - Body
2 - End cover LH
3 - End cover RH
4 - End cover screw
5 - Upper end cover
6 - Upper end cov. screw
7 - Valve plate
8 - Valve plate gasket
9 - Valve plate screw
10-Filter
11-Diaphragm plate
12-Main diaphragm
13-Large slide
14-Large slide loc. block
15-Spindle
16-Small diaphragm
17-Small slide
18-Small slide loc. block
19-Small spindle
20-Speed governor
21-O.Ring

ACCESSOIRES

1 - Corps principal
2 - Couvercle gauche
3 - Couvercle droit
4 - Vis couvercle
5 - Couvercle central
6 - Vis couvercle centr.
7 - Plaquette de base
8 - Contre-plaque
9 - Vis plaquette
10-Filtre
11-Rondelle presse-membrane
12-Membrane principale
13-Tiroir principal
14-Bloquer tiroir principal
15-Axe principal
16-Membrane d'inversion
17-Tiroir d'inversion
18-Bloquer tiroir inversion
19-Axe secondaire
20-Régulateur vitesse
21-Joint torique

ACCESORIOS

1 - Cuerpo
2 - Tapa lateral izquierda
3 - Tapa lataral derecha
4 - Tornillo tapa lateral
5 - Tapa superior
6 - Tornillo tapa superior
7 - Base del pulsador
8 - Junta de la base
9 -Tornillo de la base
10- Filtro
11- Arandela para-membrana
12- Membrana principal
13- Carro principal
14- Prisionero de carro principal
15- Eje central
16- Membrana de inverdion
17- Valvula de inversion
18- Prisionero de carro de inversion
19- Eje secundario
20- Tornillo de regulacion
21- Junta torica
